Single hopper secondary packaging machine for PP woven master bag

·Double layer climbing conveyor

·Accelerating&Counting conveyor

·Bag flap device and shaping hopper

·Supporting platform

·Single hopper secondary packing machine

·Sewing machine& Sewing conveyor

Consultation quotation

The complete system include:

·Double layer climbing conveyor

·Accelerating&Counting conveyor

·Bag flap device and shaping hopper

·Supporting platform

·Single hopper secondary packing machine

·Sewing machine& Sewing conveyor

Options：

·Check weigher

·Metal detector

·Robotic palletizing system

Features&Application :

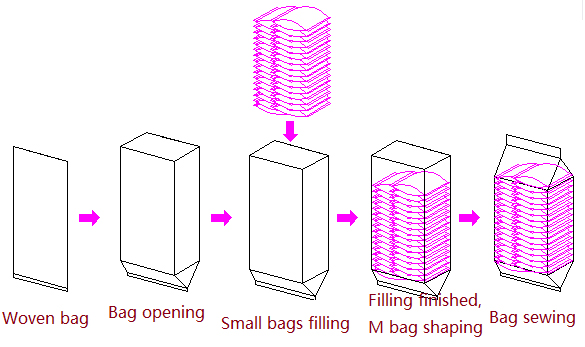

·To pack pouches of grains and powders into pre-formed bags，accurate primary bag counting, beautiful master bag shape.

·PP master bag replace carton box, save cost.

·To overcomes manual and disorderly packaging.

·Interlocked with 2 sets of primary bagging machines, 7x24 continuous production, improve production efficiency.

·It can be integrated with robot palletizing system to realize unmanned, automatic and intelligent production process.

Technical data:

Machine model	ZYEDDP2AA
Application of primary bag	0.25-10kg (customized hopper according to product range)
Max.infeed speed of primary bag	90bags/min
Packaging speed of master bag	4-8 bags（PP woven bag）
Master bag size range	L（585-950）W（350-450）Gusset（70-150）
Master bag material	Open Mouth PP woven bag
Power supply	AC380V±5%，50HZ
Max Power consumption	9KW
Air pressure	≥6kgf/c㎡
Air consumption	≤1m³/min
Noise	≤80 dB
Machine material	Painted steel frame+Contact part SS304
Machine weight	4000kg
